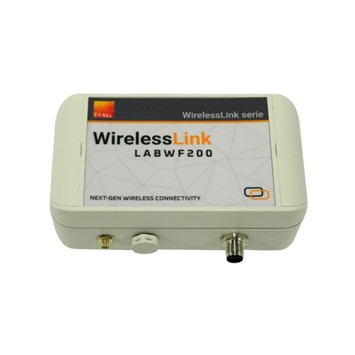

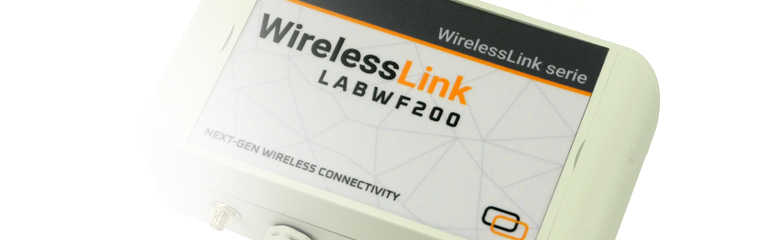

WirelessLink Wi-Fi Modem LABWF200

By connecting WirelessLink LABWF200 to the i.FeedGood-L weighing instrument it is possible to wirelessly send the weighing archive to the FarmManagerWeb cloud software or import the Recipes created in the cloud into the instrument.

The WirelessLink LABWF200 modem is equipped with a SMA female antenna connector, suitable for connecting different types of antennas.
The modem requires an internet-connected Wi-Fi network to operate.

Technical Specifications

Radio Technology		Wi-Fi
Frequency Band (MHz)		2,4GHz
Interface		RS232
Power Supply Voltage		9 ÷ 36Vdc
Power Consumption		3W
Operating Temperature		-30°C ÷ +65°C
Case		ASA/PC(UL94 V0-1,5mm)
Degree of Protection (EN60529)		IP66
Weight		290g
Dimensions (L x W x H)		160x50x90mm
